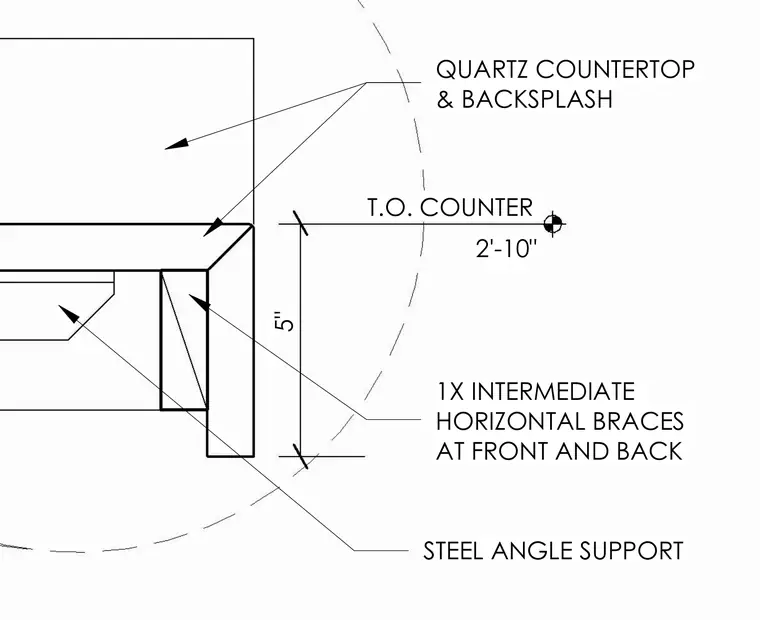

A quartz countertop and backsplash sit atop a supporting steel angle and one-inch intermediate horizontal braces positioned at the front and back. The top of the counter is set at an elevation of two feet ten inches, with a five-inch vertical dimension indicated on the assembly.
QUARTZ COUNTERTOP & BACKSPLASH T.O. COUNTER 2'-10" STEEL ANGLE SUPPORT 1X INTERMEDIATE HORIZONTAL BRACES AT FRONT AND BACK 5"
