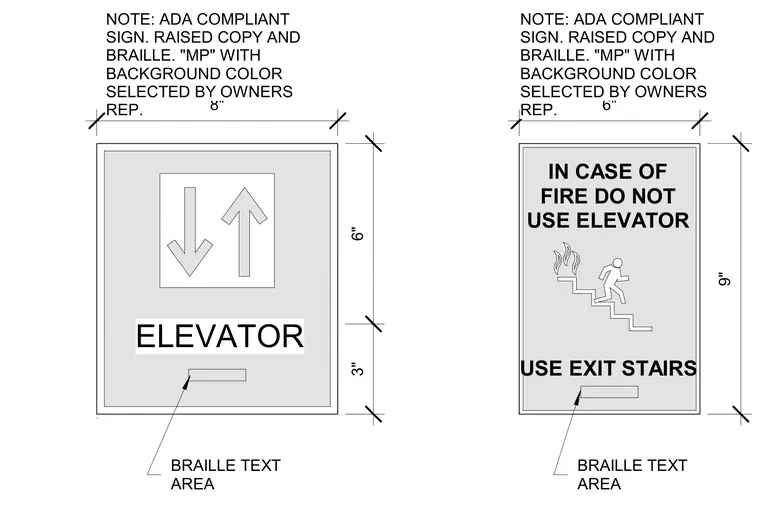

Two ADA compliant signage configurations include an eight-inch by nine-inch elevator sign and a six-inch by nine-inch fire exit stair sign. Each sign features raised copy, directional symbols, and a designated braille text area. Background colors for the metal plate are selected by the owner's representative.
ELEVATOR 8" 6" 3" 6" 9" IN CASE OF FIRE DO NOT USE ELEVATOR USE EXIT STAIRS BRAILLE TEXT AREA BRAILLE TEXT AREA NOTE: ADA COMPLIANT SIGN. RAISED COPY AND BRAILLE. "MP" WITH BACKGROUND COLOR SELECTED BY OWNERS REP. NOTE: ADA COMPLIANT SIGN. RAISED COPY AND BRAILLE. "MP" WITH BACKGROUND COLOR SELECTED BY OWNERS REP.
