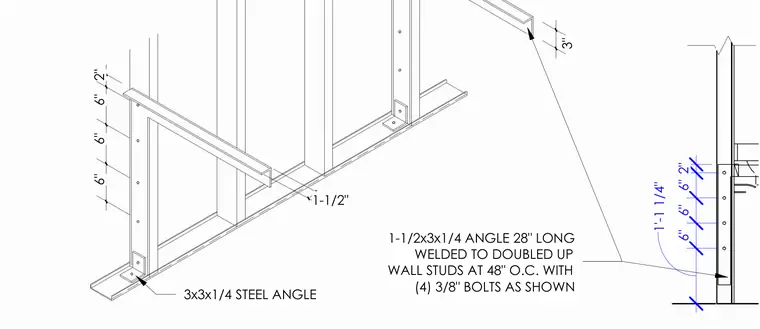

A 28-inch-long 1-1/2x3x1/4 steel angle is welded to doubled-up wall studs spaced at 48 inches on center, secured with four 3/8-inch bolts. A 3x3x1/4 steel angle provides additional support at the base of the framing assembly. Vertical dimensions detail fastener and support spacing at 2 inches, 6 inches, 6 inches, and 6 inches.
6" 6" 6" 2" 3x3x1/4 STEEL ANGLE 1-1/2" 3" 1-1/2x3x1/4 ANGLE 28" LONG WELDED TO DOUBLED UP WALL STUDS AT 48" O.C. WITH (4) 3/8" BOLTS AS SHOWN 2" 6" 6" 6" 1'-1 1/4"
