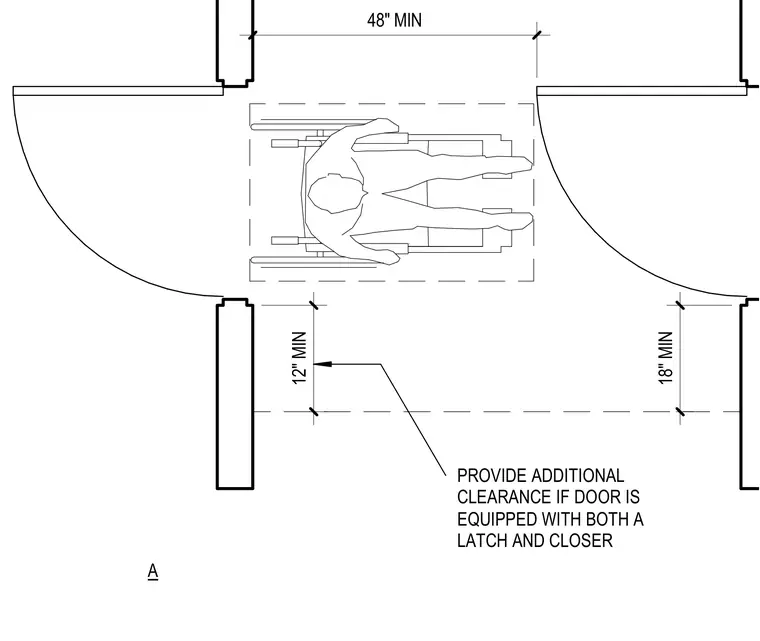

Two hinged doors in series require a minimum distance of 48 inches between the doors when they are closed. A minimum clearance of 18 inches is provided on the pull side of the door and 12 inches on the latch side. Additional clearance is provided if the door is equipped with both a latch and a closer.
18" MIN 12" MIN A 48" MIN PROVIDE ADDITIONAL CLEARANCE IF DOOR IS EQUIPPED WITH BOTH A LATCH AND CLOSER
