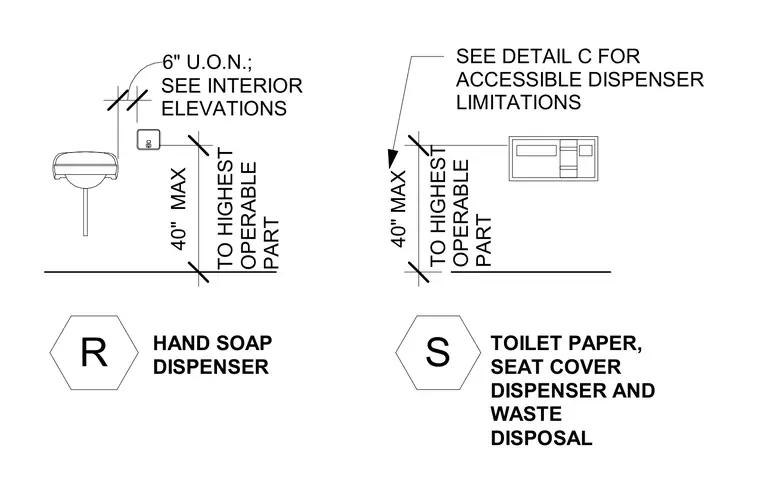

Hand soap, toilet paper, seat cover dispensers, and waste disposal units are installed with their highest operable part located a maximum of 40 inches above the finished floor. Hand soap dispensers maintain a 6-inch spacing unless otherwise noted on interior elevations. Additional dispenser limitations are referenced to detail C.
6" U.O.N.; 40" MAX HAND SOAP DISPENSER R S TOILET PAPER, SEAT COVER DISPENSER AND WASTE DISPOSAL TO HIGHEST OPERABLE PART TO HIGHEST OPERABLE PART SEE INTERIOR ELEVATIONS SEE DETAIL C FOR ACCESSIBLE DISPENSER LIMITATIONS 40" MAX
