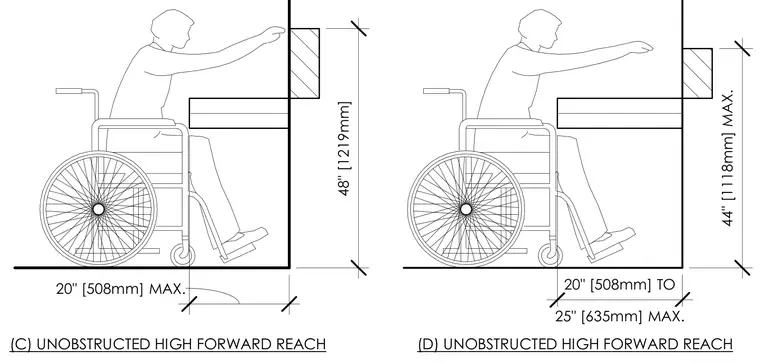

Wheelchair user forward reach dimensions defining accessibility clearances for unobstructed high forward reach elements. The maximum high forward reach is forty-eight inches above the finished floor with a maximum twenty-inch knee and toe clearance depth. An alternative configuration shows a maximum forty-four inch high forward reach with a twenty to twenty-five inch reach depth.
20" [508mm] MAX. 48" [1219mm] 44" [1118mm] MAX. 25" [635mm] MAX. 20" [508mm] TO (C) UNOBSTRUCTED HIGH FORWARD REACH (D) UNOBSTRUCTED HIGH FORWARD REACH
