Wheelchair forward approach clearances require a minimum width of thirty inches and a minimum depth of forty-eight inches. Alcove configurations deeper than twenty-four inches require a minimum width of thirty-six inches.

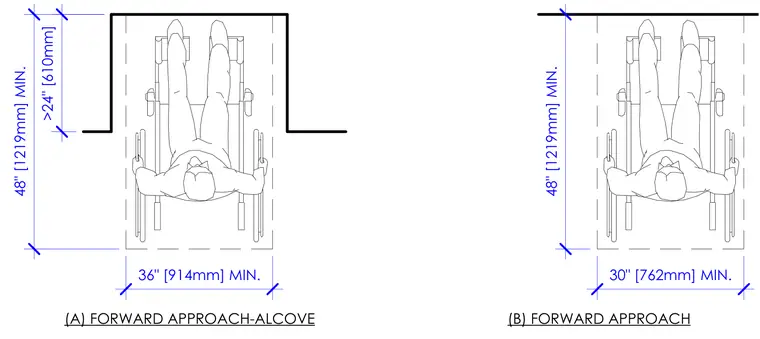

(A) FORWARD APPROACH-ALCOVE (B) FORWARD APPROACH >24" [610mm] 48" [1219mm] MIN. 36" [914mm] MIN. 48" [1219mm] MIN. 30" [762mm] MIN.
