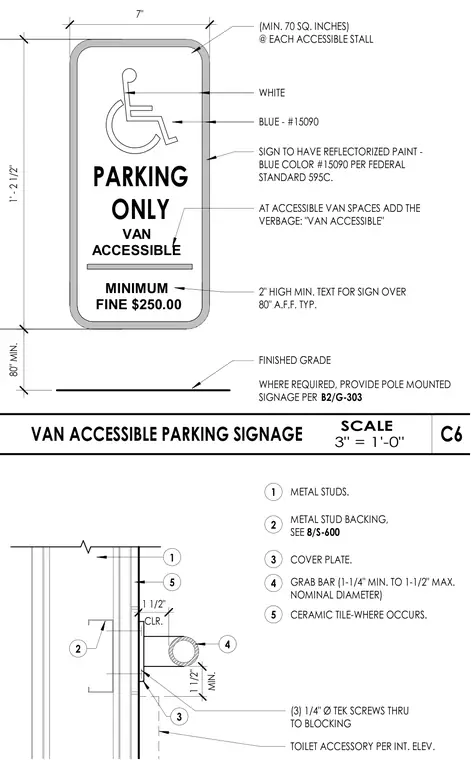

The van accessible parking sign measures 1-'-2 1/2" by 7" with reflectorized blue color #15090 per Federal Standard 595C and features white text with a minimum 2" height for text over 80" above finished floor, including the 'VAN ACCESSIBLE' parking text and fine information. The grab bar assembly connects to metal studs backed by metal stud framing using three 1/4" diameter tek screws through the cover plate into blocking, maintaining a 1-1/2" minimum clearance.
GRAB BAR (1-1/4" MIN. TO 1-1/2" MAX. NOMINAL DIAMETER) COVER PLATE. METAL STUDS. METAL STUD BACKING, SEE 8/S-600 CERAMIC TILE-WHERE OCCURS. TOILET ACCESSORY PER INT. ELEV. (3) 1/4" Ø TEK SCREWS THRU TO BLOCKING 1 2 3 4 5 5 1 4 2 3 MIN. 1 1/2" CLR. 1 1/2" VAN ACCESSIBLE (MIN. 70 SQ. INCHES) @ EACH ACCESSIBLE STALL WHITE BLUE - #15090 SIGN TO HAVE REFLECTORIZED PAINT - BLUE COLOR #15090 PER FEDERAL STANDARD 595C. FINISHED GRADE 7" 1' - 2 1/2" 80" MIN. MINIMUM FINE $250.00 2" HIGH MIN. TEXT FOR SIGN OVER 80" A.F.F. TYP. AT ACCESSIBLE VAN SPACES ADD THE VERBAGE: "VAN ACCESSIBLE" PARKING ONLY WHERE REQUIRED, PROVIDE POLE MOUNTED SIGNAGE PER B2/G-303 SCALE 3" = 1'-0" C6 VAN ACCESSIBLE PARKING SIGNAGE
