Architectural · G-PS99Q

Mounting Height Over Obstruction

Elements

About this detail

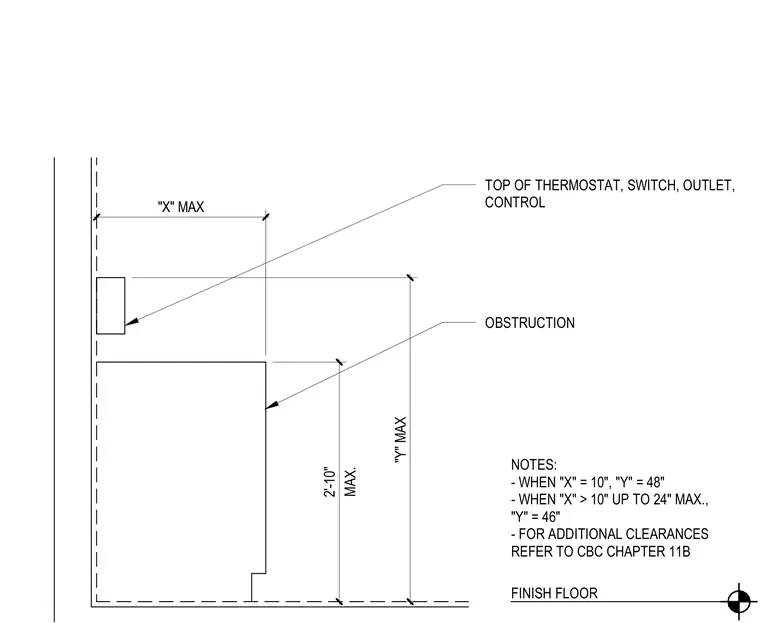

This elevation detail establishes the maximum mounting height and reach dimensions for thermostats, switches, outlets, and controls located above a physical obstruction. When depth dimension "X" equals ten inches, maximum height dimension "Y" to the top of the operable part is forty-eight inches above the finish floor. When depth dimension "X" exceeds ten inches up to twenty-four inches maximum, maximum height dimension "Y" is reduced to forty-six inches. The vertical clearance from the finish floor to the top of the obstruction is limited to a maximum of two feet ten inches.
