Architectural · G-PK3XZ

Exterior Wall Types with EIFS and Tile Finishes

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

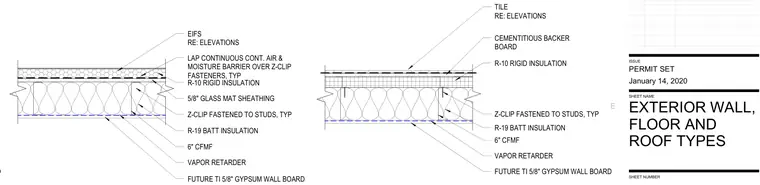

The assembly is constructed with six-inch cold-formed metal framing studs filled with R-19 batt insulation and faced with a vapor retarder and future tenant improvement five-eighths-inch gypsum wall board on the interior. The exterior side of the framing receives five-eighths-inch glass mat sheathing, a continuous air and moisture barrier, and R-10 rigid insulation secured with Z-clip fasteners. The exterior finish is completed with either exterior insulation and finish system or tile over a cementitious backer board, referenced per the elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
