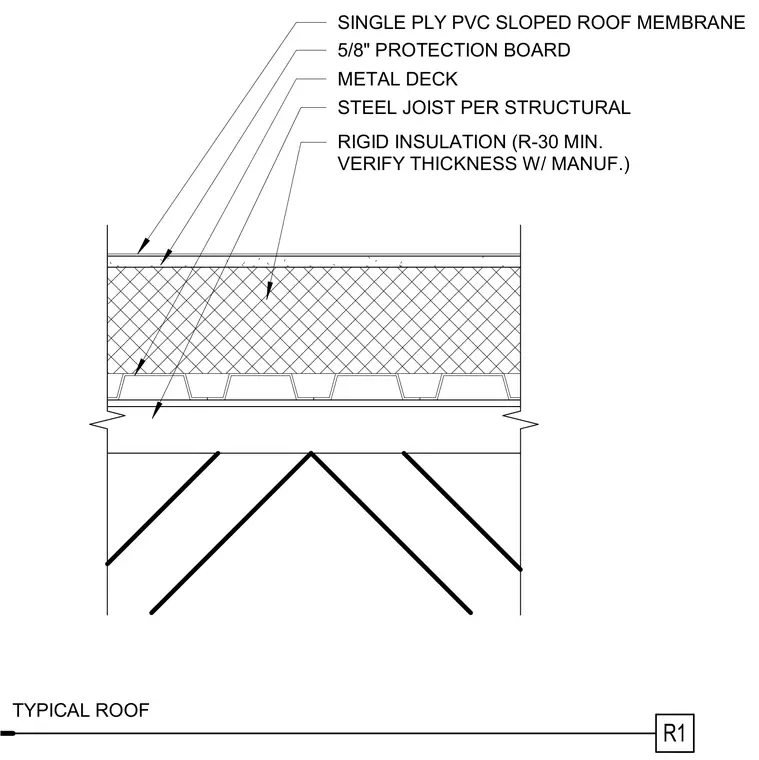

A single-ply PVC sloped roof membrane is applied over a five-eighths-inch protection board. Rigid insulation provides a minimum R-30 thermal value, with thickness verified per the manufacturer. The assembly bears on a metal deck supported by a steel joist sized per structural engineering requirements.
R1 METAL DECK STEEL JOIST PER STRUCTURAL RIGID INSULATION (R-30 MIN. VERIFY THICKNESS W/ MANUF.) 5/8" PROTECTION BOARD SINGLE PLY PVC SLOPED ROOF MEMBRANE TYPICAL ROOF
