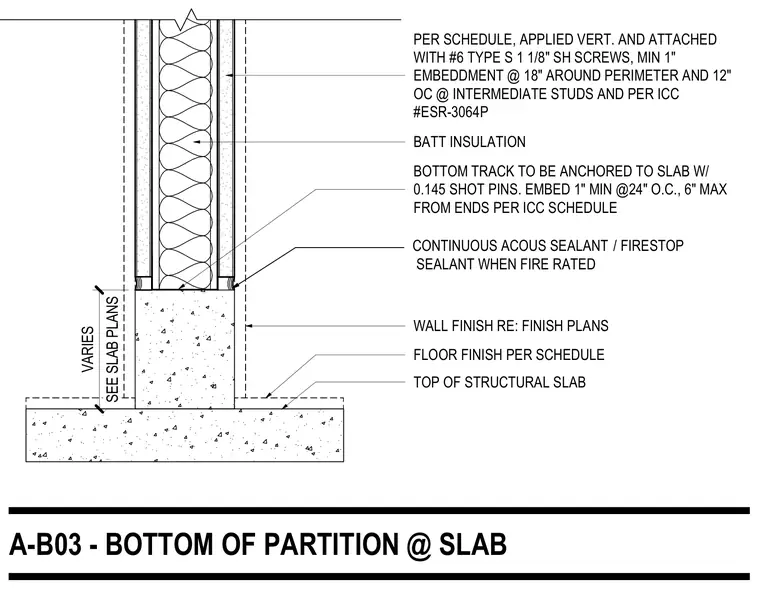

The metal stud wall bottom track rests on the top of the structural slab and is anchored using 0.145-inch shot pins embedded a minimum of one inch at 24 inches on center with a maximum of 6 inches from the ends. Vertical studs are attached with number 6 type S 1-1/8 inch screws with a minimum one inch embedment at 18 inches around the perimeter and 12 inches on center at intermediate studs. Continuous batt insulation fills the wall cavity between the interior gypsum board layers. Continuous acoustical sealant or firestop sealant is applied at the base joint where the wall finish meets the slab.
BOTTOM TRACK TO BE ANCHORED TO SLAB W/ 0.145 SHOT PINS. EMBED 1" MIN @24" O.C., 6" MAX FROM ENDS PER ICC SCHEDULE PER SCHEDULE, APPLIED VERT. AND ATTACHED WITH #6 TYPE S 1 1/8" SH SCREWS, MIN 1" EMBEDDMENT @ 18" AROUND PERIMETER AND 12" OC @ INTERMEDIATE STUDS AND PER ICC #ESR-3064P TOP OF STRUCTURAL SLAB WALL FINISH RE: FINISH PLANS FLOOR FINISH PER SCHEDULE BATT INSULATION CONTINUOUS ACOUS SEALANT SEE SLAB PLANS VARIES A-B03 - BOTTOM OF PARTITION @ SLAB / FIRESTOP SEALANT WHEN FIRE RATED
