G-P4WCP — UL Firestop System W-J-2230 Wall Penetration Detail

Fire Protection · G-P4WCP

UL Firestop System W-J-2230 Wall Penetration Detail

About this detail

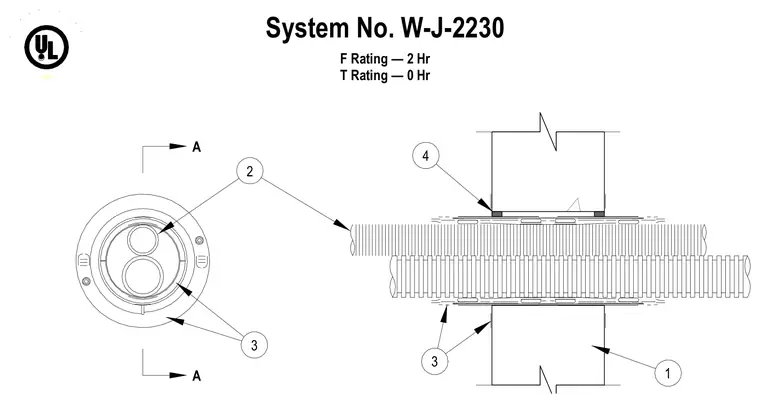

This Underwriters Laboratories firestop system provides a two-hour F rating and zero-hour T rating for penetrations through wall assemblies. The detail shows a wall assembly penetrated by piping enclosed within a sleeve, sealed to achieve the required fire rating. Numbered callouts designate the wall construction, penetrating items, sleeves, and firestopping materials.

Classified by Underwriters Laboratories, Inc. to UL 1479 R A A System No. W-J-2230 F Rating — 2 Hr T Rating — 0 Hr C L A S S I F I E D 1 4 3 3 2

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
