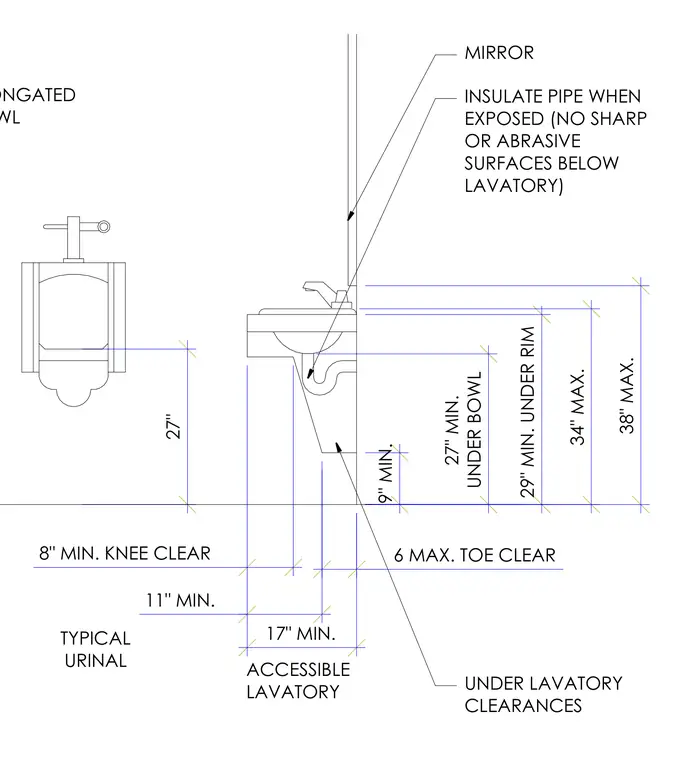

Accessible lavatory and urinal clearance requirements specify mounting heights and spatial limits for compliance. The lavatory includes a twenty-nine-inch minimum under-rim clearance, twenty-seven-inch minimum under-bowl clearance, seventeen-inch minimum side clearance, eight-inch minimum knee clearance, and six-inch maximum toe clearance. Exposed piping under the lavatory requires insulation and protection against sharp or abrasive surfaces. The urinal indicates a twenty-seven-inch rim height and eleven-inch minimum clearance. A mirror is positioned above the lavatory with maximum operational heights indicated.
29" MIN. UNDER RIM 34" MAX. 38" MAX. 27" 9" MIN. 17" MIN. 27" MIN. UNDER BOWL 11" MIN. 6 MAX. TOE CLEAR 8" MIN. KNEE CLEAR INSULATE PIPE WHEN EXPOSED (NO SHARP OR ABRASIVE SURFACES BELOW LAVATORY) ELONGATED BOWL MIRROR ACCESSIBLE LAVATORY TYPICAL URINAL UNDER LAVATORY CLEARANCES
