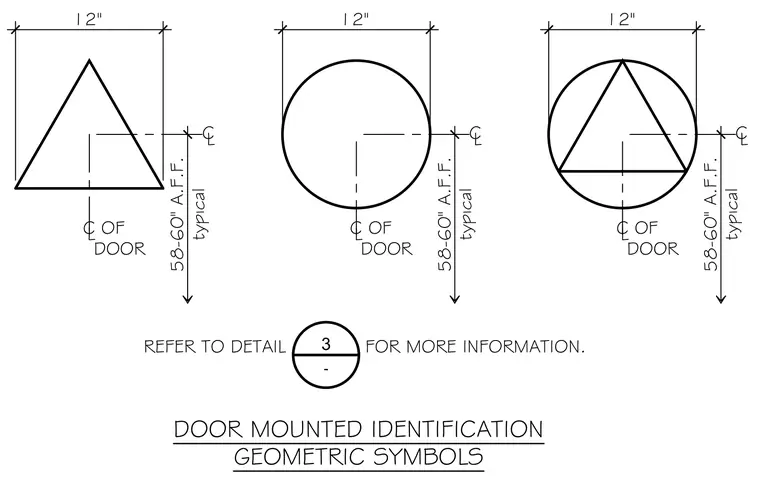

Standardized geometric symbols for door-mounted identification are centered horizontally on the door with a twelve-inch width and positioned fifty-eight to sixty inches above the finished floor. The layout includes standalone triangles, circles, and combined circle-and-triangle shapes aligned to the vertical center line of the door.
OF DOOR DOOR MOUNTED IDENTIFICATION GEOMETRIC SYMBOLS CL OF DOOR CL OF DOOR CL CL CL CL 12" 12" 12" 58-60" A.F.F. typical 58-60" A.F.F. typical 58-60" A.F.F. typical REFER TO DETAIL FOR MORE INFORMATION. 3 -
