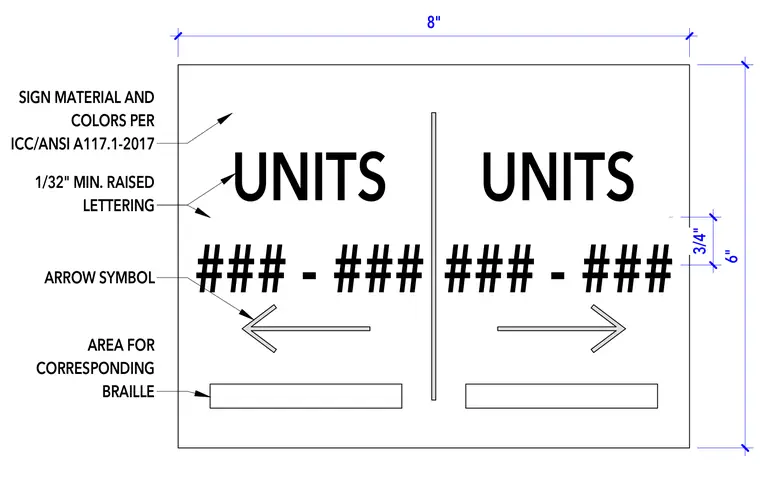

This unit directional signage assembly measures eight inches wide by six inches high and complies with ICC/ANSI A117.1-2017 standards for materials and colors. It features one-thirty-second-inch minimum raised lettering for unit numbers, directional arrow symbols, and designated areas for corresponding braille text below.
UNITS ### - ### UNITS ### - ### 8" 6" SIGN MATERIAL AND COLORS PER ICC/ANSI A117.1-2017 1/32" MIN. RAISED LETTERING ARROW SYMBOL AREA FOR CORRESPONDING BRAILLE 3/4"
