A California Building Code compliant door-mounted women's restroom identification sign features a one-foot diameter circular matte acrylic background. The back-painted acrylic panel measures one-quarter inch thick with eased edges and a color contrasting with the door finish. A restroom identification symbol and symbol of accessibility are applied to the face of the sign with contrasting color. The assembly is installed at a mounting height of sixty inches to the centerline.

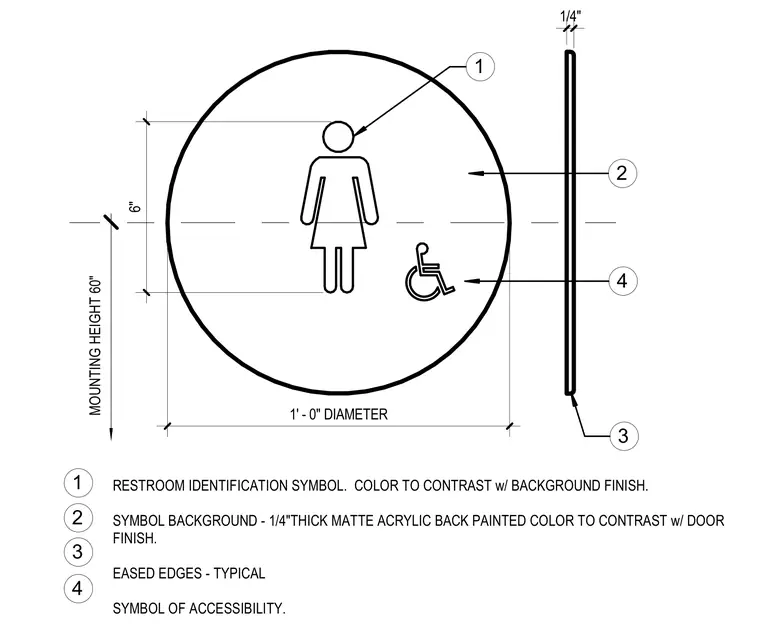

1 2 4 3 1 RESTROOM IDENTIFICATION SYMBOL. COLOR TO CONTRAST w/ BACKGROUND FINISH. SYMBOL BACKGROUND - 1/4"THICK MATTE ACRYLIC BACK PAINTED COLOR TO CONTRAST w/ DOOR FINISH. EASED EDGES - TYPICAL SYMBOL OF ACCESSIBILITY. 2 3 4 6" MOUNTING HEIGHT 60" 1' - 0" DIAMETER 1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
