The pull side latch approach requires a minimum clearance of thirty-two inches of clear width, twenty-four inches minimum past the latch, and sixty inches minimum in the direction of swing per Figure 11B-404.2.4.1.

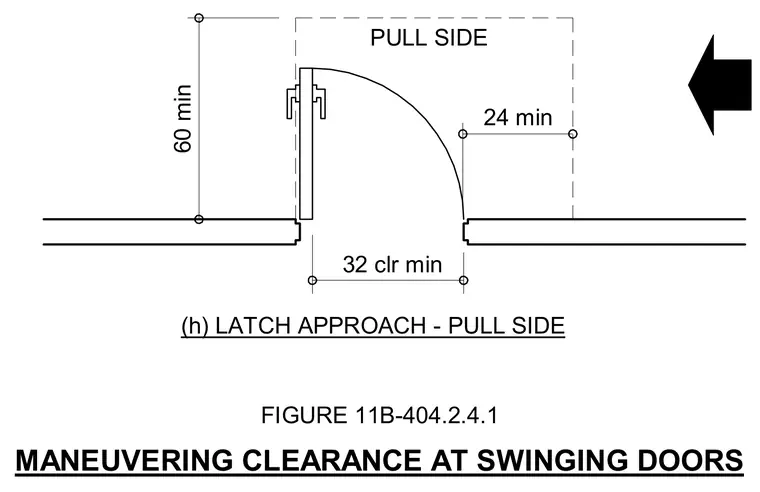

(h) LATCH APPROACH - PULL SIDE FIGURE 11B-404.2.4.1 PULL SIDE 32 clr min 24 min 60 min MANEUVERING CLEARANCE AT SWINGING DOORS
