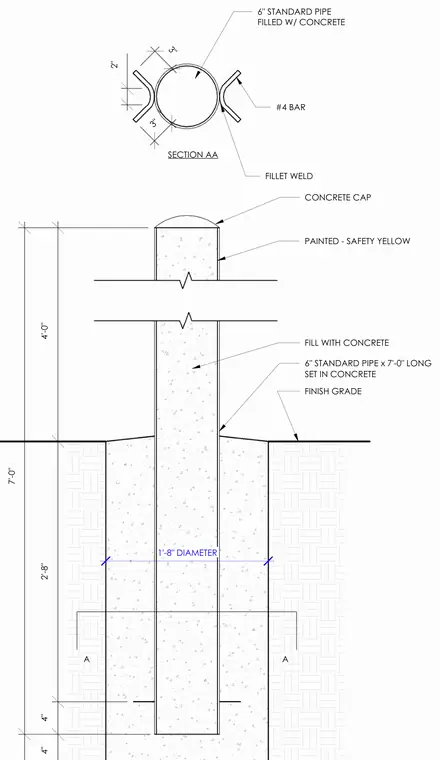

A six-inch standard steel pipe is set seven feet long into a concrete footing and filled with concrete, topped with a rounded concrete cap and painted safety yellow. Two number four reinforcing bars are welded to the pipe with fillet welds and embedded in the footing. The footing has a one-foot-eight-inch diameter extending down below the finish grade.
4" 2'-8" 7'-0" 4'-0" 2" 3" 3" 4" FILL WITH CONCRETE CONCRETE CAP 6" STANDARD PIPE x 7'-0" LONG SET IN CONCRETE FINISH GRADE #4 BAR SECTION AA FILLET WELD A A 6" STANDARD PIPE FILLED W/ CONCRETE 1'-8" DIAMETER PAINTED - SAFETY YELLOW
