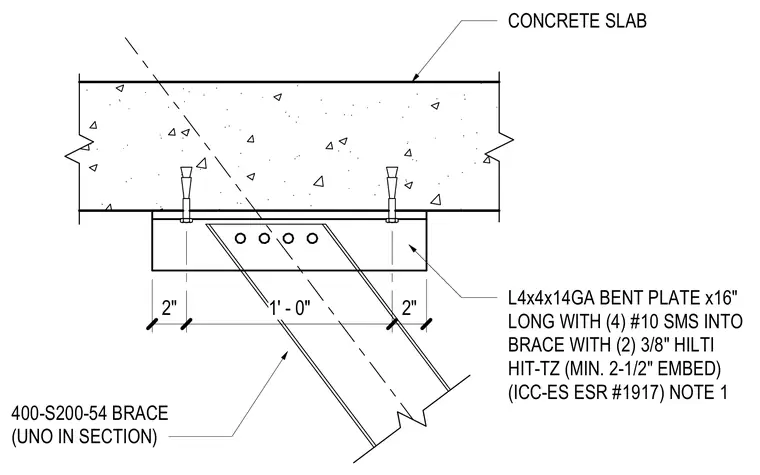

A 400-S200-54 cold-formed steel brace is anchored to the underside of a concrete slab using a 14-gauge L4x4 bent plate measuring 16 inches long. The bent plate secures to the brace with four number 10 self-tapping sheet metal screws and fastens to the concrete slab using two 3/8-inch Hilti HIT-TZ expansion anchors requiring a minimum 2-1/2-inch embedment.
CONCRETE SLAB 400-S200-54 BRACE (UNO IN SECTION) L4x4x14GA BENT PLATE x16" LONG WITH (4) #10 SMS INTO BRACE WITH (2) 3/8" HILTI HIT-TZ (MIN. 2-1/2" EMBED) (ICC-ES ESR #1917) NOTE 1 2" 1' - 0" 2"
