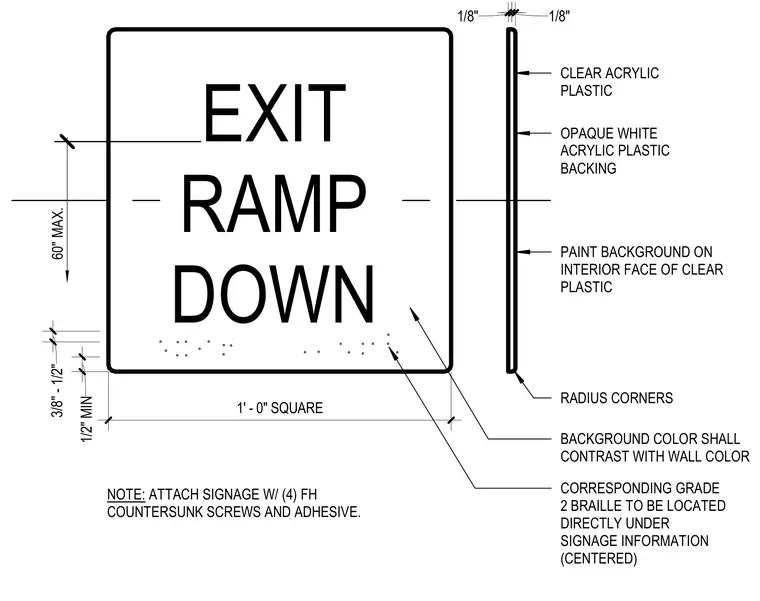

The sign consists of a square clear acrylic plastic face with radius corners and an opaque white acrylic plastic backing. The background color is painted on the interior face of the clear plastic and must contrast with the supporting wall color. Corresponding Grade 2 Braille is located directly centered under the main signage information. The assembly is attached to the wall using four flat-head countersunk screws and adhesive, positioned at a maximum height of sixty inches with a bottom clearance of three-eighths to one-half inch.
EXIT RAMP DOWN 1/8" 1/8" 1' - 0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX.
