Architectural · G-MZS7J

Top of Partition at Concrete Over Metal Deck

Materials

Concrete Steel Metal (misc.)Gypsum / Drywall

Elements

Partitions Roofs Ceilings Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

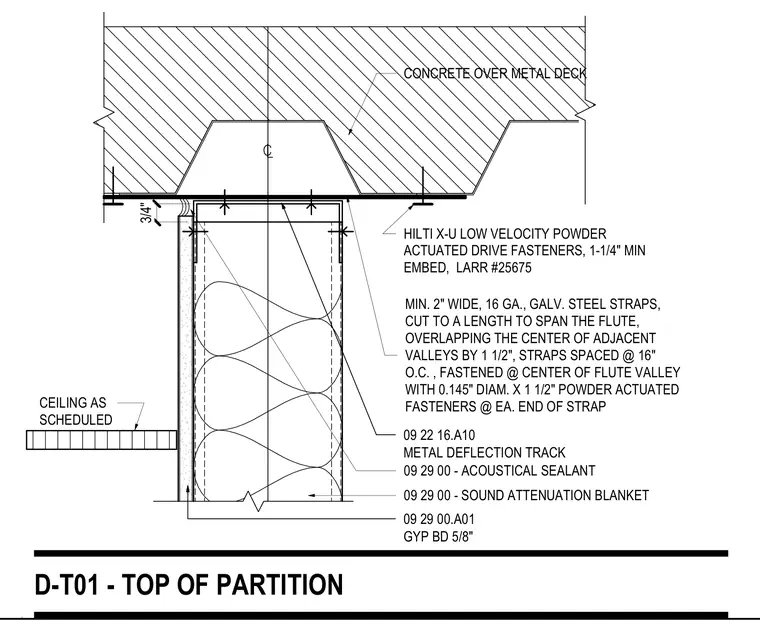

A gypsum board partition intersects a concrete slab over a metal deck. A metal deflection track is secured beneath the deck using Hilti X-U low-velocity powder-actuated drive fasteners with a minimum one and one-quarter inch embedment. Minimum two-inch wide, sixteen-gauge galvanized steel straps span the deck flutes, overlapping adjacent valley centers by one and one-half inches, spaced at sixteen inches on center, and fastened at each end with zero point one four five inch diameter by one and one-half inch powder-actuated fasteners. Sound attenuation blanket insulation fills the stud cavity, and acoustical sealant is applied at the partition edge alongside five-eighths inch gypsum board and a ceiling as scheduled.
