Floor transitions permit a maximum one-half inch vertical change in level for carpeted surfaces, and a maximum one-quarter inch vertical change for general level transitions. Openings in the floor surface must maintain a maximum one-half inch dimension, with the long dimension oriented perpendicular to the predominant direction of travel.

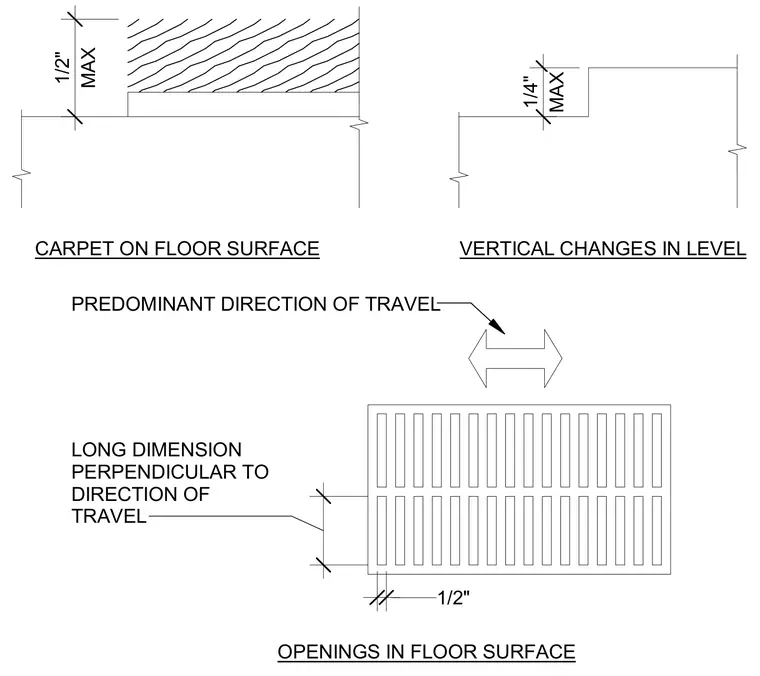

CARPET ON FLOOR SURFACE VERTICAL CHANGES IN LEVEL OPENINGS IN FLOOR SURFACE PREDOMINANT DIRECTION OF TRAVEL LONG DIMENSION PERPENDICULAR TO DIRECTION OF TRAVEL MAX 1/4" 1/2" MAX 1/2"
