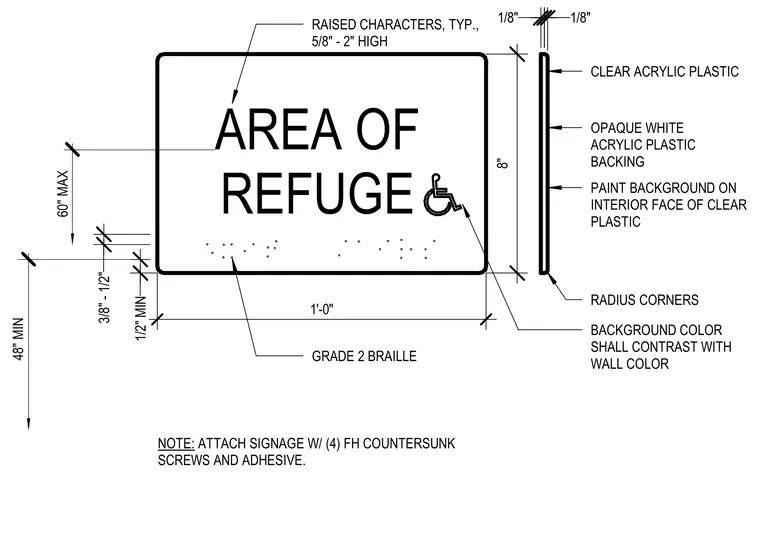

The assembly consists of a clear acrylic plastic face plate with painted background on its interior face backed by opaque white acrylic plastic, featuring radius corners. Raised characters measuring five-eighths to two inches high and Grade 2 braille are included on the face. The sign measures one foot wide by eight inches high with a thickness between one-eighth and one-quarter inch. It is mounted using four flathead countersunk screws and adhesive, positioned at a height ranging from forty-eight inches minimum to sixty inches maximum above the finished floor.
1'-0" 1/2" MIN 3/8" - 1/2" 1/8" 1/8" AREA OF REFUGE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 8" 60" MAX 48" MIN GRADE 2 BRAILLE RAISED CHARACTERS, TYP., 5/8" - 2" HIGH
