Architectural · G-MJ2CW

Door Hardware

Elements

Doors Floors / Slabs Roof / Floor Openings

About this detail

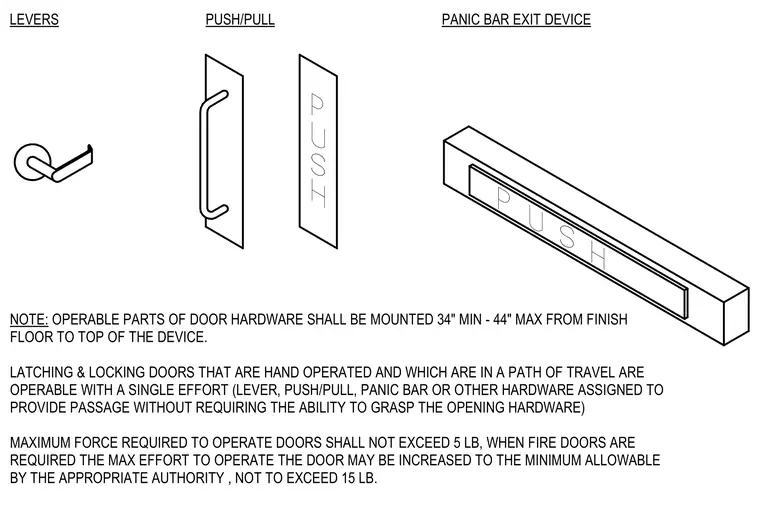

Operable parts of door hardware are mounted between thirty-four inches minimum and forty-four inches maximum from the finish floor to the top of the device. Latching and locking doors in a path of travel are operable with a single effort using levers, push-pull plates, panic bars, or equivalent hardware without requiring tight grasping. The maximum operating force required for doors shall not exceed five pounds, except for fire doors where the maximum effort may be increased to the minimum allowable by the appropriate authority not to exceed fifteen pounds.
