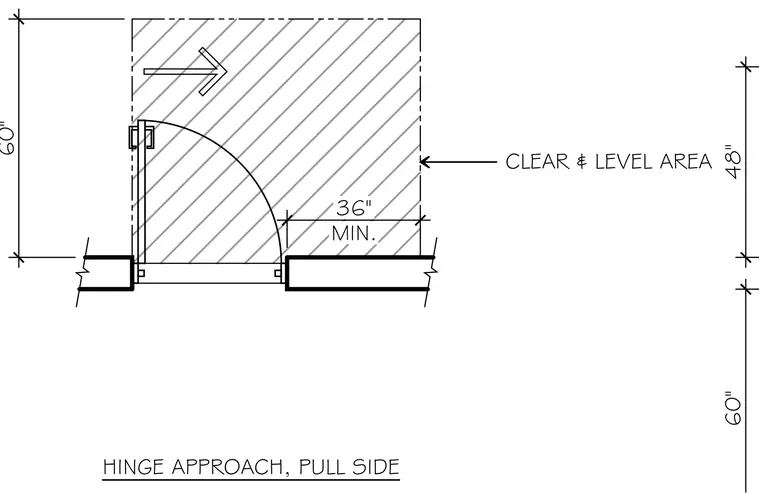

The clear and level area dimensions for an interior door approach on the hinge approach pull side require sixty inches perpendicular to the doorway by forty-eight inches parallel, with a minimum thirty-six inch clearance beyond the latch side.
HINGE APPROACH, PULL SIDE CLEAR & LEVEL AREA 60" 48" 60" 36" MIN.
