Membrane Transition at Wall

Materials

Elements

About this detail

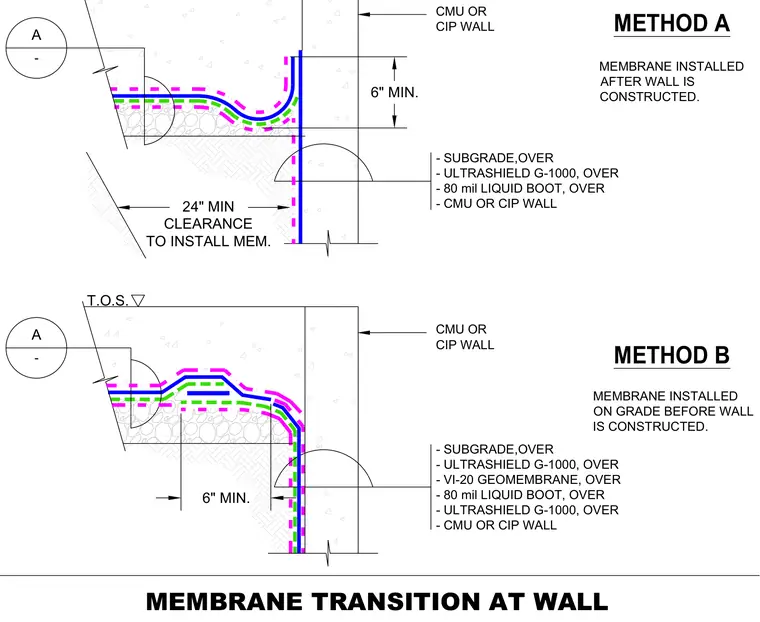

Two installation methods apply to waterproofing membrane transitions at concrete masonry unit or cast-in-place concrete foundation walls. Method A features the membrane installed after the wall is constructed, requiring a twenty-four-inch minimum clearance. Method B features the membrane installed on grade before the wall is constructed. The layered waterproofing assembly consists of a subgrade layer over Ultrashield G-1000, VI-20 geomembrane, eighty-mil Liquid Boot, and an additional layer of Ultrashield G-1000 applied directly to the concrete or masonry wall substrate with a six-inch minimum overlap.
