Architectural · G-M7XDT

Exit Stair Identification Sign

Elements

About this detail

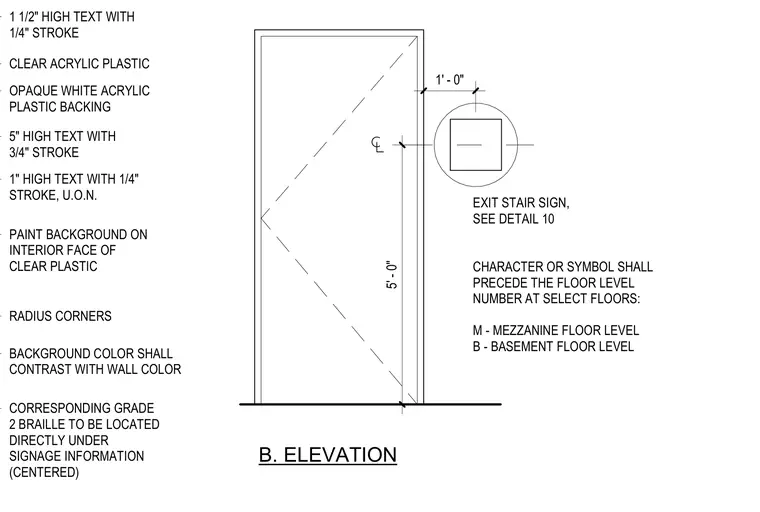

An exit stair identification sign is constructed from a clear acrylic plastic face with a painted background on its interior surface and an opaque white acrylic plastic backing, featuring radius corners and a background color that contrasts with the supporting wall color. The assembly includes one-and-a-half-inch high text with a quarter-inch stroke, five-inch high text with a three-quarter-inch stroke, and one-inch high text with a quarter-inch stroke unless otherwise noted. Corresponding Grade 2 Braille is located directly centered under the signage information. Specific floor level characters or symbols precede the floor level number at select floors, including M for mezzanine floor level and B for basement floor level.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
