General · G-M57G8

UL System Firestop Penetration Detail for Pipe and Cable

Materials

Elements

About this detail

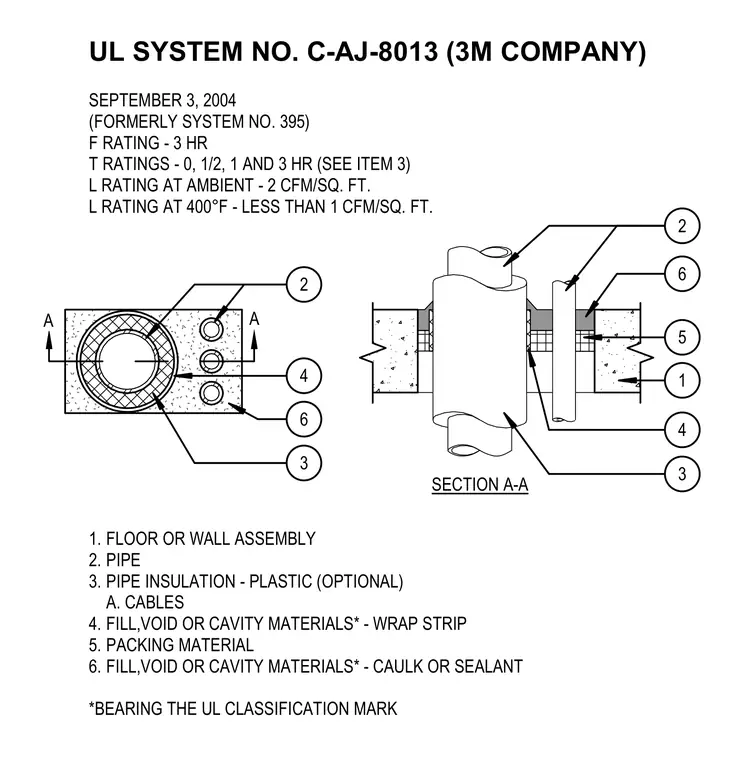

A floor or wall assembly is penetrated by a pipe with optional plastic insulation and cables. The annular space around the penetrants is sealed using fill, void, or cavity materials including a wrap strip, packing material, and a top layer of caulk or sealant bearing the UL classification mark. Section A-A details the layering and spatial arrangement of the firestopping components within the assembly thickness. The assembly achieves a 3-hour F rating and specific L ratings at ambient and elevated temperatures.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
