UL System Firestop Assembly at Steel Air Duct

Materials

Elements

About this detail

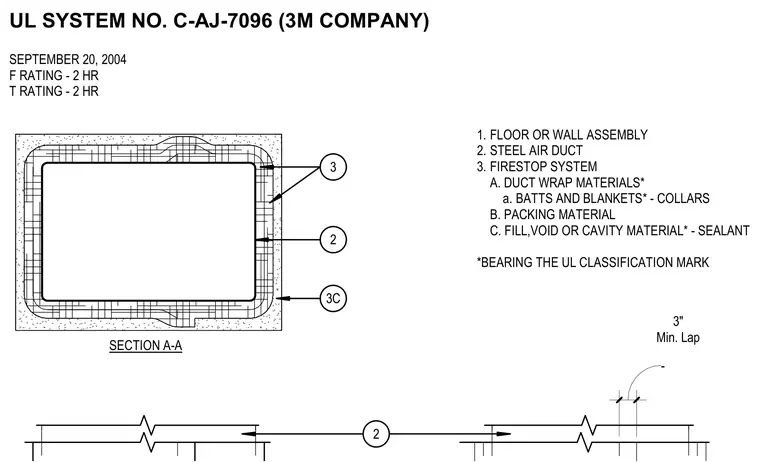

A steel air duct penetrates a floor or wall assembly protected by a UL-classified firestop system achieving a two-hour F rating and two-hour T rating. The penetration assembly incorporates duct wrap materials consisting of batts and blankets forming collars, packing material, and fill, void, or cavity sealant. A minimum lap of three inches is specified for the wrap components.
