A one-and-a-half-inch diameter grab bar is secured to a metal stud wall using a mounting flange with three number twelve by one-and-five-eighths-inch type S vandal-resistant oval head sheet metal screws. The screws anchor through the mounting flange and finish into a type C metal backing plate installed between the studs. A bushing is provided for full bearing at each screw location within the flange. Wall types are referenced to the architectural floor plans.

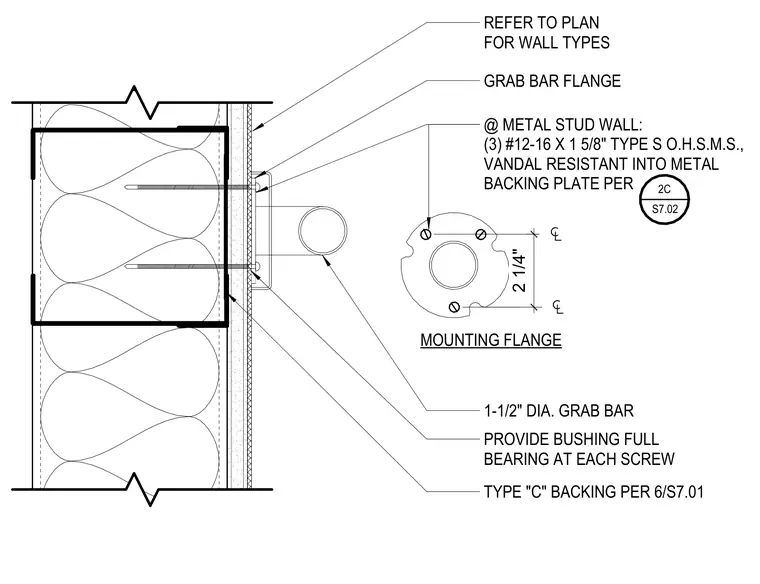

MOUNTING FLANGE PROVIDE BUSHING FULL BEARING AT EACH SCREW 1-1/2" DIA. GRAB BAR GRAB BAR FLANGE REFER TO PLAN FOR WALL TYPES 2 1/4" @ METAL STUD WALL: (3) #12-16 X 1 5/8" TYPE S O.H.S.M.S., VANDAL RESISTANT INTO METAL BACKING PLATE PER 2C S7.02 TYPE "C" BACKING PER 6/S7.01
