Architectural · G-KZE7D

Elevator Car Control Panel Detail

Materials

Elements

Doors Floors / Slabs Entrances Connections / Plates

About this detail

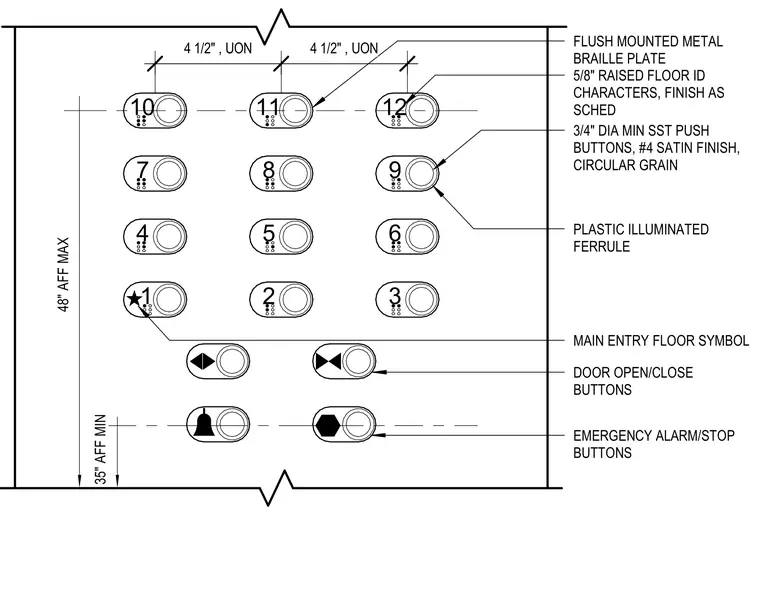

An elevator car control panel features flush-mounted metal braille plates with five-eighths inch raised floor identification characters finished per schedule. The assembly incorporates three-quarter inch diameter minimum stainless steel push buttons with a number four satin finish and circular grain, set within plastic illuminated ferrules. Control buttons include numbered floor selections with a main entry floor symbol, door open and close buttons, and emergency alarm and stop buttons. The control panel layout maintains a maximum height of forty-eight inches above finished floor and a minimum height of thirty-five inches above finished floor for accessibility, with four-and-one-half-inch spacing typical unless otherwise noted.
