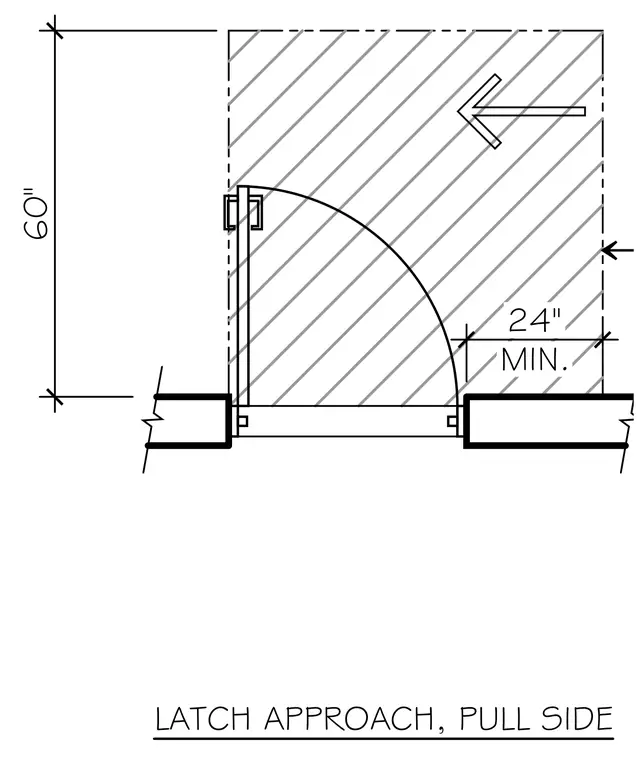

The pull side latch approach requires a minimum twenty-four inch clearance beyond the latch edge of the door, combined with a sixty-inch depth approach perpendicular to the doorway. These dimensions ensure wheelchair maneuvering clearance as mandated by accessibility standards.
LATCH APPROACH, PULL SIDE 60" 24" MIN.
