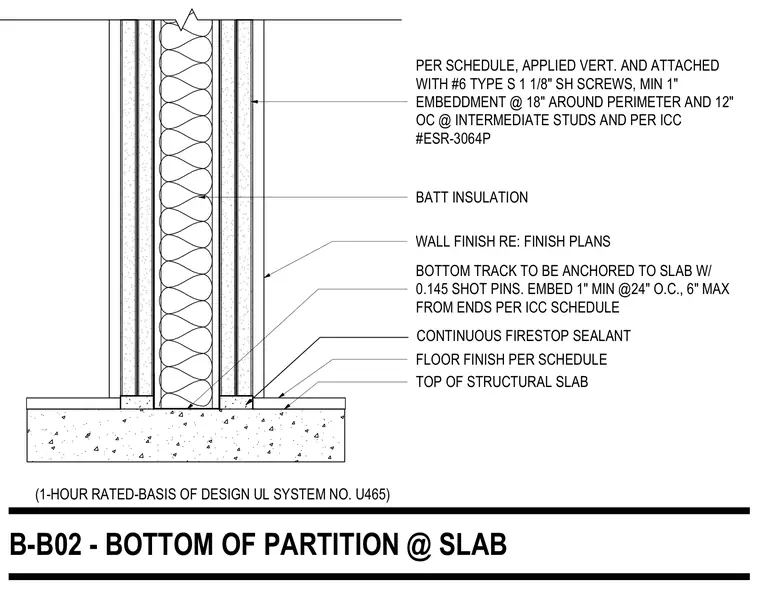

A metal stud partition base connects to the top of a structural concrete slab using a bottom track anchored with 0.145-inch shot pins at twenty-four inches on center with a six-inch maximum from ends. Gypsum wallboard is applied vertically and attached with number six type S one-and-one-eighth-inch screws spaced at eighteen inches around the perimeter and twelve inches on center at intermediate studs per ICC report ESR-3064P. Continuous batt insulation fills the stud cavity, and continuous firestop sealant is applied at the floor joint.
(1-HOUR RATED-BASIS OF DESIGN UL SYSTEM NO. U465) BOTTOM TRACK TO BE ANCHORED TO SLAB W/ 0.145 SHOT PINS. EMBED 1" MIN @24" O.C., 6" MAX FROM ENDS PER ICC SCHEDULE PER SCHEDULE, APPLIED VERT. AND ATTACHED WITH #6 TYPE S 1 1/8" SH SCREWS, MIN 1" EMBEDDMENT @ 18" AROUND PERIMETER AND 12" OC @ INTERMEDIATE STUDS AND PER ICC #ESR-3064P TOP OF STRUCTURAL SLAB BATT INSULATION CONTINUOUS FIRESTOP SEALANT WALL FINISH RE: FINISH PLANS FLOOR FINISH PER SCHEDULE B-B02 - BOTTOM OF PARTITION @ SLAB
