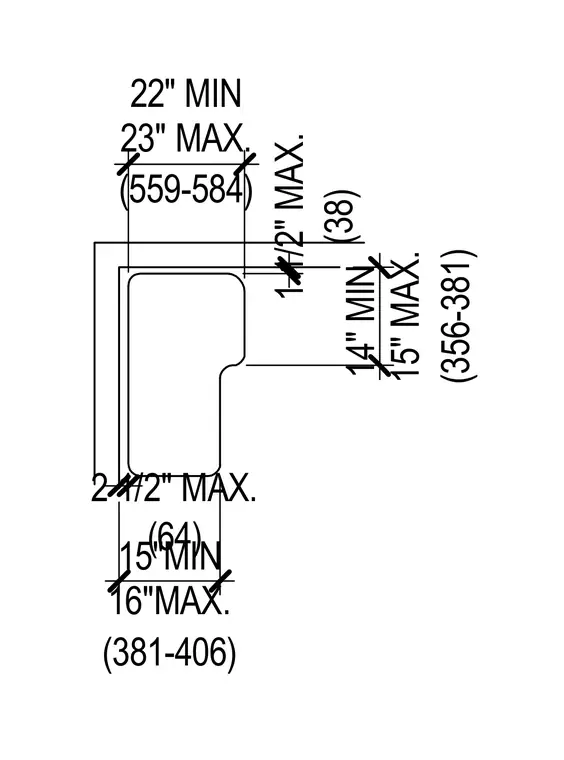

Accessibility reach range layout establishing dimensional limits for mounting heights and forward or side reaches. Dimensional constraints include 22-inch minimum and 23-inch maximum ranges, 14-inch to 15-inch ranges, 15-inch to 16-inch ranges, and 1.5-inch and 2.5-inch maximum clearance values.
(64) 2 1/2" MAX. (381-406) 15"MIN 16"MAX. (356-381) 14" MIN 15" MAX. (38) 1 1/2" MAX. (559-584) 22" MIN 23" MAX.
