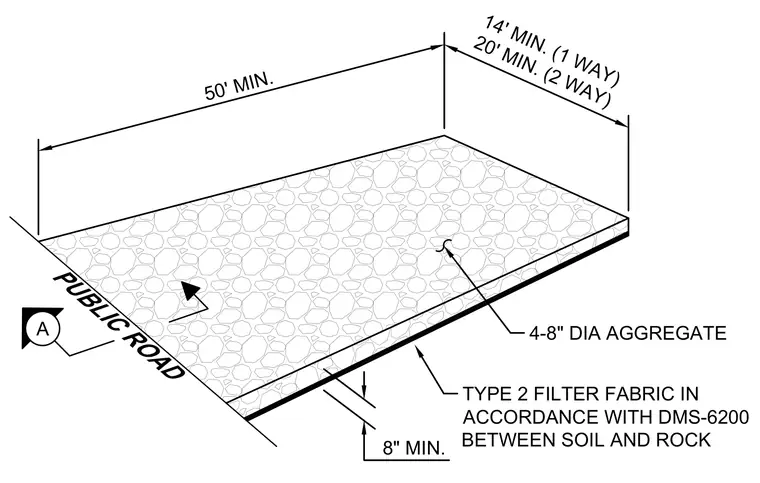

An axonometric detail of a public road construction standard with a minimum 8-inch layer of four to eight-inch diameter aggregate over a Type 2 filter fabric placed between the soil and rock in accordance with DMS-6200. The roadway dimensions require a minimum width of fourteen feet for one-way traffic or twenty feet for two-way traffic, with a minimum length of fifty feet.
14' MIN. (1 WAY) 20' MIN. (2 WAY) 50' MIN. A PUBLIC ROAD 8" MIN. 4-8" DIA AGGREGATE TYPE 2 FILTER FABRIC IN ACCORDANCE WITH DMS-6200 BETWEEN SOIL AND ROCK
