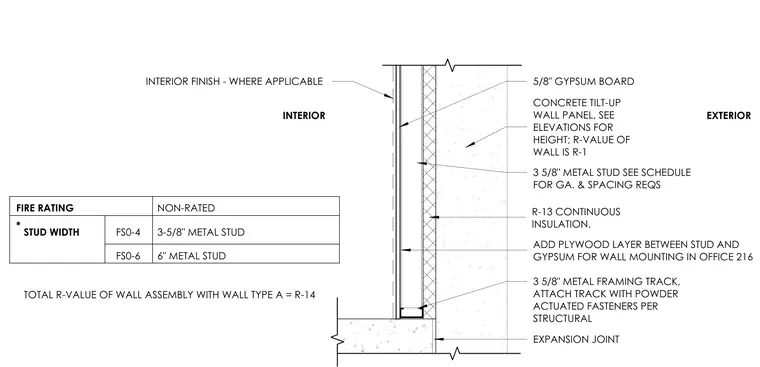

A concrete tilt-up wall panel assembly features continuous insulation and interior metal stud framing. The exterior concrete panel receives R-13 continuous insulation. The interior framing consists of three and five-eighths inch metal studs spaced per schedule with five-eighths inch gypsum board finish. The metal framing track is secured using powder-actuated fasteners per structural requirements. An optional plywood layer is added between the stud and gypsum board for wall mounting in office two hundred sixteen.
5/8" GYPSUM BOARD 3 5/8" METAL STUD SEE SCHEDULE FOR GA. & SPACING REQS 3 5/8" METAL FRAMING TRACK, ATTACH TRACK WITH POWDER ACTUATED FASTENERS PER STRUCTURAL EXPANSION JOINT CONCRETE TILT-UP WALL PANEL, SEE ELEVATIONS FOR HEIGHT; R-VALUE OF WALL IS R-1 INTERIOR EXTERIOR R-13 CONTINUOUS INSULATION. NON-RATED FIRE RATING * STUD WIDTH FS0-4 3-5/8" METAL STUD TOTAL R-VALUE OF WALL ASSEMBLY WITH WALL TYPE A = R-14 ADD PLYWOOD LAYER BETWEEN STUD AND GYPSUM FOR WALL MOUNTING IN OFFICE 216 FS0-6 6" METAL STUD INTERIOR FINISH - WHERE APPLICABLE
