ADA Accessible Door Clearance and Approach Requirements

Elements

About this detail

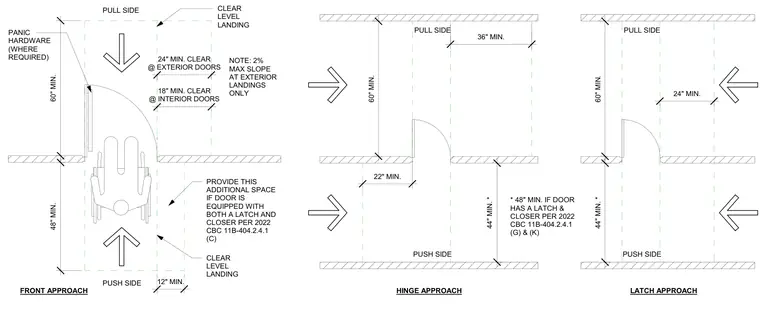

Clear level landing spaces at doors require specific approach dimensions for front, hinge, and latch approaches. Front approach configurations maintain a pull side of sixty inches minimum and a push side of forty-eight inches minimum, with additional space provided if the door is equipped with both a latch and closer per 2022 California Building Code 11B-404.2.4.1. Additional clearances include twenty-four inches minimum at exterior doors and eighteen inches minimum at interior doors on the pull side, with twelve inches and twenty-four inches shown for push side clearances. Hinge and latch approach diagrams detail sixty-inch minimum depths, thirty-six-inch minimum widths, and forty-four-inch minimum push side clearances with specific adjustments for latch and closer hardware. Exterior landings are restricted to a maximum slope of two percent.
