A chlorinated polyvinyl chloride pipe penetrates a framed gypsum board wall assembly with an annular space sealed by a fill, void, or cavity material. The wall assembly consists of framing studs faced with gypsum board layers on both sides. The annular gap surrounding the penetrant is sealed with a firestop sealant applied at the wall surfaces to achieve specified fire and air leakage ratings. The assembly conforms to UL System No. W-L-2377 for fire-rated wall penetrations.

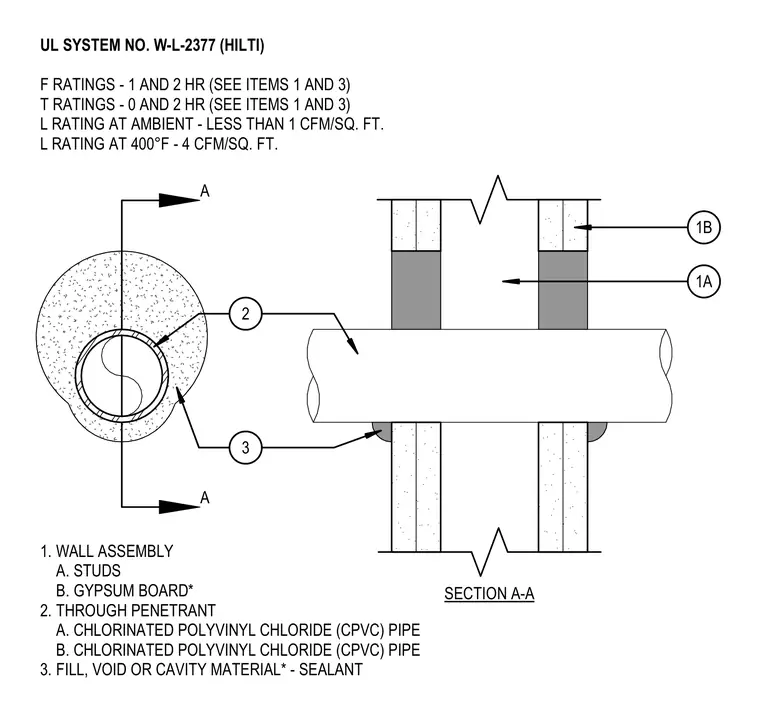

SECTION A-A UL SYSTEM NO. W-L-2377 (HILTI) F RATINGS - 1 AND 2 HR (SEE ITEMS 1 AND 3) T RATINGS - 0 AND 2 HR (SEE ITEMS 1 AND 3) L RATING AT AMBIENT - LESS THAN 1 CFM/SQ. FT. L RATING AT 400°F - 4 CFM/SQ. FT. 1. WALL ASSEMBLY A. STUDS B. GYPSUM BOARD* 2. THROUGH PENETRANT A. CHLORINATED POLYVINYL CHLORIDE (CPVC) PIPE B. CHLORINATED POLYVINYL CHLORIDE (CPVC) PIPE 3. FILL, VOID OR CAVITY MATERIAL* - SEALANT A A 1A 1B 2 3
