Accessible doorway clearances specify a minimum clear width of 36 inches or 915 millimeters, alongside a secondary minimum dimension of 24 inches or 610 millimeters for doorways within doors or folding door configurations.

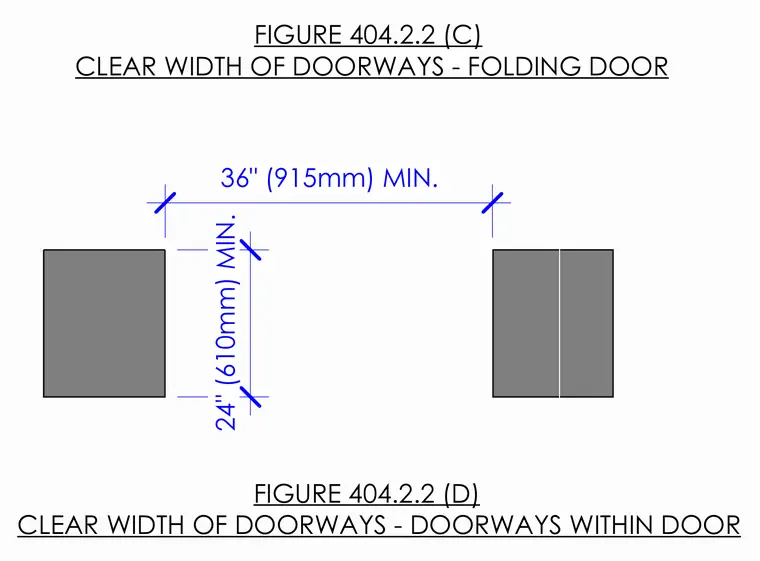

FIGURE 404.2.2 (C) CLEAR WIDTH OF DOORWAYS - FOLDING DOOR FIGURE 404.2.2 (D) CLEAR WIDTH OF DOORWAYS - DOORWAYS WITHIN DOOR 36" (915mm) MIN. 24" (610mm) MIN.
