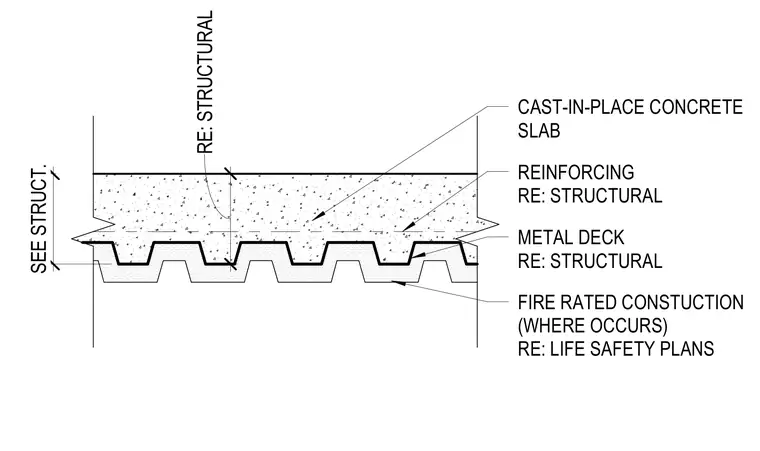

A cast-in-place concrete slab is supported by a formed metal deck with internal reinforcing as specified in the structural drawings. Fire-rated construction is applied below the metal deck where indicated on the life safety plans. Slab thickness and structural sizing are coordinated with the structural engineer.
METAL DECK RE: STRUCTURAL REINFORCING RE: STRUCTURAL CAST-IN-PLACE CONCRETE SLAB SEE STRUCT. RE: STRUCTURAL FIRE RATED CONSTUCTION (WHERE OCCURS) RE: LIFE SAFETY PLANS
