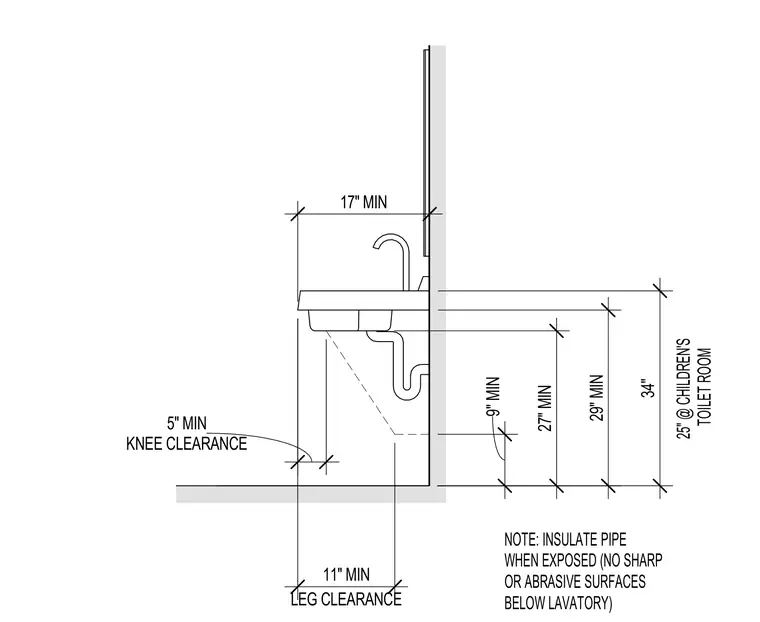

Wall-hung lavatory mounting height and accessibility clearances showing a maximum thirty-four inch rim height with twenty-nine inch minimum knee clearance underneath. The fixture maintains a seventeen inch minimum reach to the centerline and a twenty-five inch rim height for children's toilet rooms. Exposed piping requires insulation with no sharp or abrasive surfaces below the lavatory.
9" MIN 27" MIN 29" MIN 34" LEG CLEARANCE 11" MIN KNEE CLEARANCE 5" MIN 17" MIN NOTE: INSULATE PIPE WHEN EXPOSED (NO SHARP OR ABRASIVE SURFACES BELOW LAVATORY) 25" @ CHILDREN'S TOILET ROOM
