A steel duct penetrates a wall assembly composed of studs and gypsum board up to a maximum size of 100 inches by 100 inches. The annular space around the duct is packed with mineral wool, batt insulation, or fiberglass packing material. Firestop sealant is applied to a five-eighths inch depth on both sides of the assembly against steel angles. The penetration achieves a one and two-hour F-rating and a one-half hour T-rating.

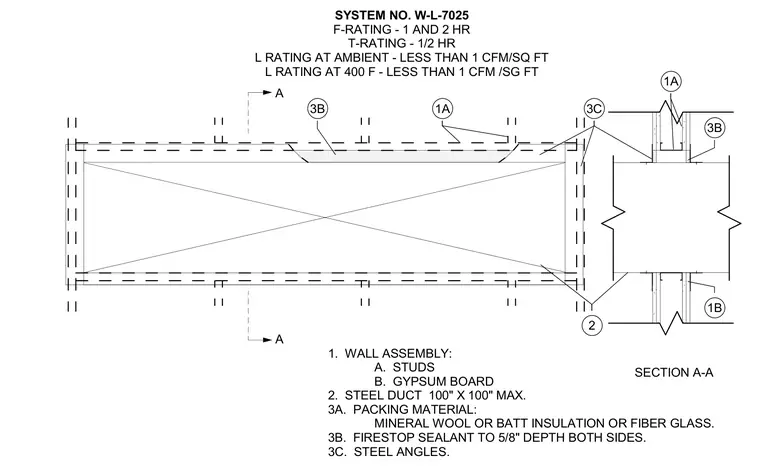

SECTION A-A A A 1. WALL ASSEMBLY: A. STUDS B. GYPSUM BOARD 2. STEEL DUCT 100" X 100" MAX. 3A. PACKING MATERIAL: MINERAL WOOL OR BATT INSULATION OR FIBER GLASS. 3B. FIRESTOP SEALANT TO 5/8" DEPTH BOTH SIDES. 3C. STEEL ANGLES. SYSTEM NO. W-L-7025 F-RATING - 1 AND 2 HR T-RATING - 1/2 HR L RATING AT AMBIENT - LESS THAN 1 CFM/SQ FT L RATING AT 400 F - LESS THAN 1 CFM /SG FT 3B 1A 3C 1A 3B 1B 2
