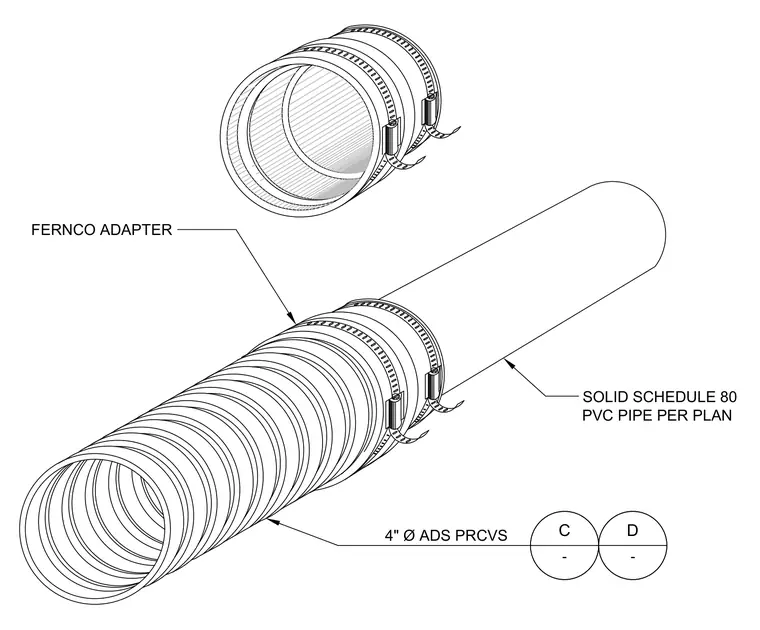

A four-inch diameter ADS corrugated pipe connects to a solid Schedule 80 PVC pipe sized per plan. A Fernco adapter secures the joint between the two different pipe materials with stainless steel band clamps.
