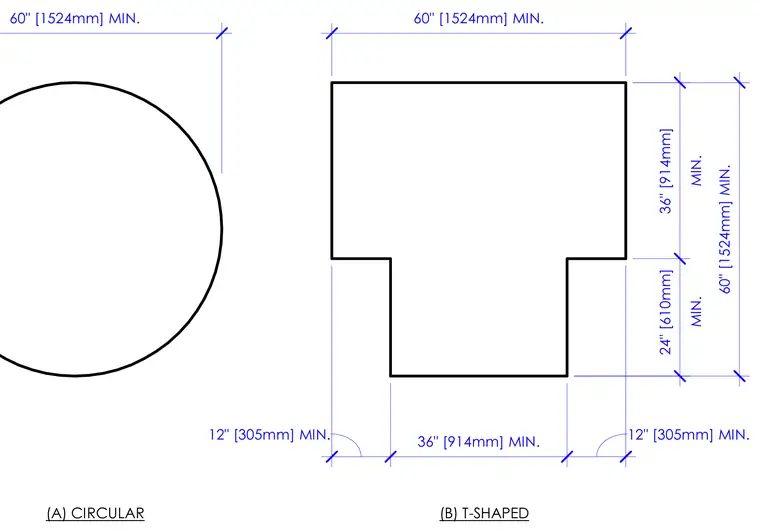

Wheelchair turning space diagrams show the required minimum floor clearances for accessible routing and maneuvering. The circular configuration requires a minimum diameter of sixty inches. The T-shaped configuration requires a sixty-inch by sixty-inch space with specific leg dimensions including a thirty-six-inch by twenty-four-inch base and matching side clearances.
60" [1524mm] MIN. 60" [1524mm] MIN. 12" [305mm] MIN. 36" [914mm] MIN. 12" [305mm] MIN. MIN. 36" [914mm] MIN. 24" [610mm] 60" [1524mm] MIN. (A) CIRCULAR (B) T-SHAPED
