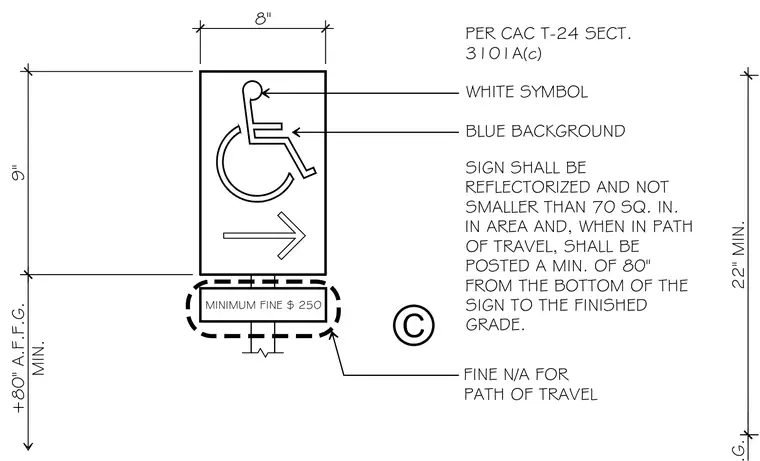

An accessible parking and path of travel sign requires a blue background and a white symbol with a minimum area of seventy square inches. The sign must be reflectorized and mounted at a minimum height of eighty inches from the bottom of the sign to the finished grade when located in a path of travel. An optional minimum two hundred fifty dollar fine supplemental plaque may be included below the main sign depending on the location and jurisdiction.
WHITE SYMBOL BLUE BACKGROUND SIGN SHALL BE REFLECTORIZED AND NOT SMALLER THAN 70 SQ. IN. IN AREA AND, WHEN IN PATH OF TRAVEL, SHALL BE POSTED A MIN. OF 80" FROM THE BOTTOM OF THE SIGN TO THE FINISHED GRADE. PER CAC T-24 SECT. 3101A(c) MINIMUM FINE $ 250 FINE N/A FOR PATH OF TRAVEL C 8" 9" 22" MIN. +80" A.F.F.G. MIN.
