A pole-mounted parking sign is positioned adjacent to an accessible walkway, requiring a minimum clearance of five feet above the finish grade, or six feet and eight inches minimum when located in an accessible route. A concrete wheel stop is placed in the parking stall two feet minimum from the curb edge. The adjacent curb is two feet wide, followed by a four-foot-wide sidewalk.

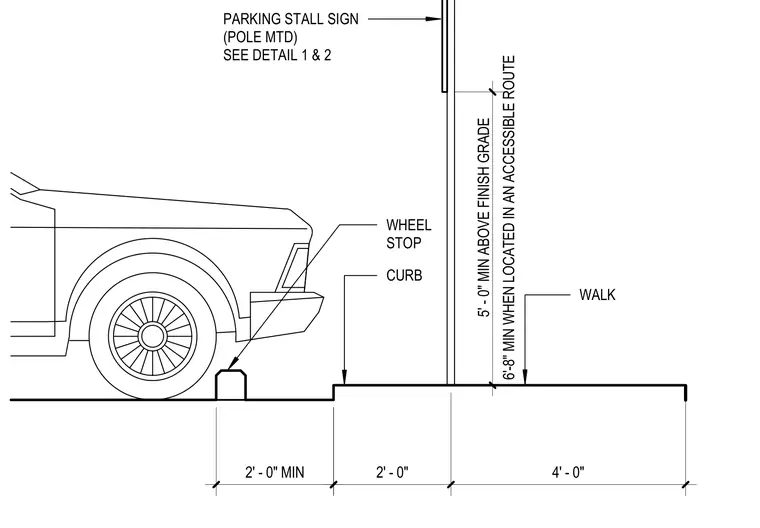

6'-8" MIN WHEN LOCATED IN AN ACCESSIBLE ROUTE 5' - 0" MIN ABOVE FINISH GRADE PARKING STALL SIGN (POLE MTD) SEE DETAIL 1 & 2 WHEEL STOP CURB WALK 2' - 0" MIN 2' - 0" 4' - 0"
