Restroom signage requires a quarter-inch thick material with eased edges and symbols that contrast with the background. Signage must include contracted braille complying with CBC 11B-703.3 and lettering complying with CBC 11B-703.2. Fasteners consist of a minimum of four recessed flush-head tamper-proof screws. Symbols are superimposed per the 2025 California Building Code.

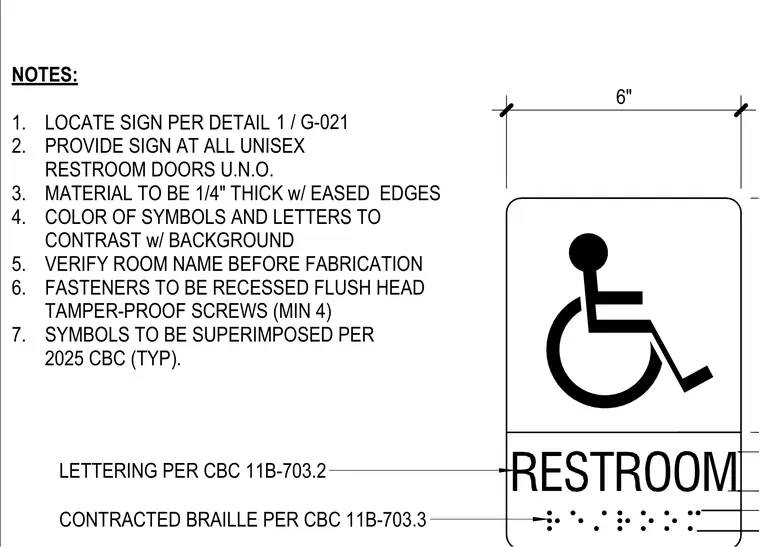

NOTES: 1. LOCATE SIGN PER DETAIL 2. PROVIDE SIGN AT ALL UNISEX RESTROOM DOORS U.N.O. 3. MATERIAL TO BE 1/4" THICK w/ EASED EDGES 4. COLOR OF SYMBOLS AND LETTERS TO CONTRAST w/ BACKGROUND 5. VERIFY ROOM NAME BEFORE FABRICATION 6. FASTENERS TO BE RECESSED FLUSH HEAD TAMPER-PROOF SCREWS (MIN 4) 7. SYMBOLS TO BE SUPERIMPOSED PER 2025 CBC (TYP). 1 / G-021 CONTRACTED BRAILLE PER CBC 11B-703.3 LETTERING PER CBC 11B-703.2 6"
