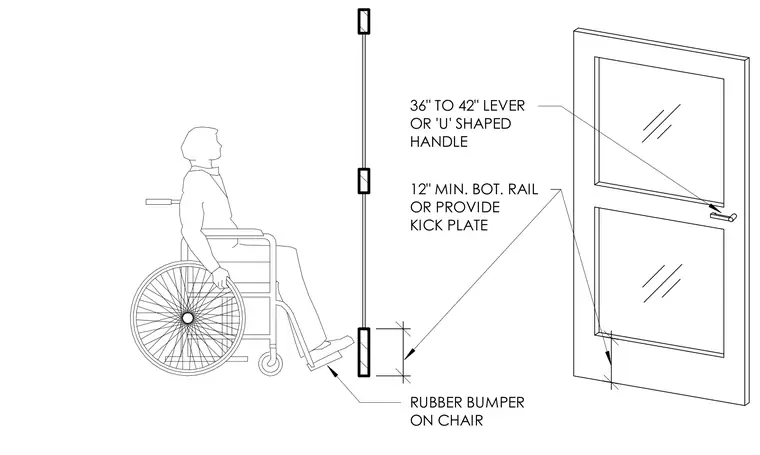

Accessibility detail illustrating the mounting height requirements for a lever or 'U' shaped handle placed thirty-six to forty-two inches above the finished floor. The door features a twelve-inch minimum bottom rail or a kick plate to prevent damage from wheelchair footrests. A rubber bumper on the wheelchair footrest aligns with the bottom of the door assembly.
36" TO 42" LEVER OR 'U' SHAPED HANDLE 12" MIN. BOT. RAIL OR PROVIDE KICK PLATE RUBBER BUMPER ON CHAIR
