New building interior and exterior thresholds are restricted to a maximum height of one-half inch above adjacent floor levels with exposed edges beveled or sloped at an angle not exceeding forty-five degrees so that vertical elevation changes do not exceed one-quarter inch. Door panels require a minimum thirty-two inches of clear width for both sliding and hinged configurations. A ten-inch minimum smooth uninterrupted surface is maintained at the door bottom rail, and compressed carpet is positioned a maximum of one-quarter inch below the top of the threshold.

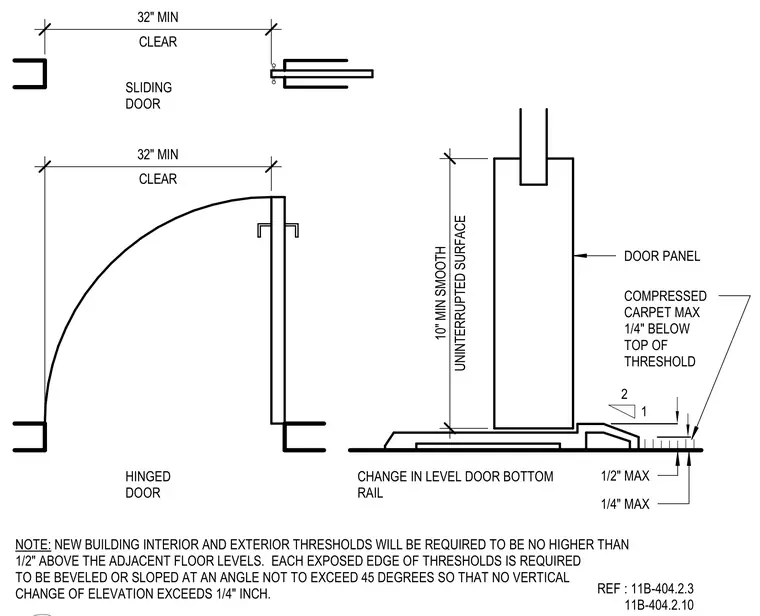

NOTE: NEW BUILDING INTERIOR AND EXTERIOR THRESHOLDS WILL BE REQUIRED TO BE NO HIGHER THAN 1/2" ABOVE THE ADJACENT FLOOR LEVELS. EACH EXPOSED EDGE OF THRESHOLDS IS REQUIRED TO BE BEVELED OR SLOPED AT AN ANGLE NOT TO EXCEED 45 DEGREES SO THAT NO VERTICAL CHANGE OF ELEVATION EXCEEDS 1/4" INCH. REF : 11B-404.2.3 11B-404.2.10 2 1 UNINTERRUPTED SURFACE 10" MIN SMOOTH HINGED DOOR CHANGE IN LEVEL DOOR BOTTOM RAIL DOOR PANEL CLEAR 32" MIN SLIDING DOOR CLEAR 32" MIN COMPRESSED CARPET MAX 1/4" BELOW TOP OF THRESHOLD 1/2" MAX 1/4" MAX
